Cold Box Resin is a core-making binder used in the cold box process. It consists of Component I (phenolic resin) and Component II (polyisocyanate), which cure under the action of a catalyst. As one of the most critical raw materials in foundry production, the rational selection and use of cold box resin can effectively reduce quality risks such as sand holes, sand inclusions, core breakage, and porosity in castings.
1、Part number of ASK Cold Box Resin
Part number | Application | Feature | |||
ISOCUREⅠ399W BINDER ISOCURE Ⅱ 697WBINDER | Cast iron, cast steel | Fast curing with minimal sticking | |||
ISOCUREⅠ397C BINDER ISOCURE Ⅱ 697CL BINDER | Cast iron, cast steel | Excellent moisture resistance and fast curing | |||
ISOCURE FOCUSⅠ440D BINDER ISOCURE FOCUSⅡ840D BINDER | Cast iron, cast steel, cast aluminum | High strength, low viscosity | |||
ISOCURE FOCUSⅠ492CY BINDER ISOCURE FOCUSⅡ892CY BINDER | cast aluminum | Good Resin Sand Flowability and Excellent Collapsibility | |||
ISOCURE FOCUSⅠ448C BINDER ISOCURE FOCUSⅡ848C BINDER | cast aluminum | Excellent release properties, high strength | |||
ISOCUREⅠX13 BINDER ISOCUREⅡX26 BINDER | Cast iron, cast steel, cast aluminum | Low smoke emission and low odor | |||
ISOCUREⅠ468 BINDER ISOCUREⅡ868 BINDER | Cast iron, cast steel, cast aluminum | Good moisture resistance, low volatile organic compounds (VOCs) and hazardous air pollutants (HAPs) |
2、Product Advantages
ASK Cold Box Resin is produced using a fully automated production line and features excellent curing characteristics, low gas generation, high coating compatibility, and superior environmental performance. It is widely used in the production of both ferrous and non-ferrous castings for industries such as automotive, aerospace, agriculture, and municipal engineering. This resin effectively reduces core-making costs, improves production efficiency, enhances sand core quality, optimizes working conditions, and comprehensively upgrades the overall quality of castings.
Our company is an authorized distributor of ASK (Zhenjiang) New Materials Technology Co., Ltd., representing their full range of products including ASK coatings, resins, exothermic feeding risers, and more.
3、Product Application
Serial Number | Type of Raw Sand | Initial Strength | Final Strength | Gas Evolution | Room Temperature Flexural Strength |
1 | Quartz Sand | 1MPa | 1.98MPa | 12mL/g | 6MPa |
2 | Ceramic Sand | 1.52MPa | 3.51MPa | 8mL/g | 9MPa |
|
|
|

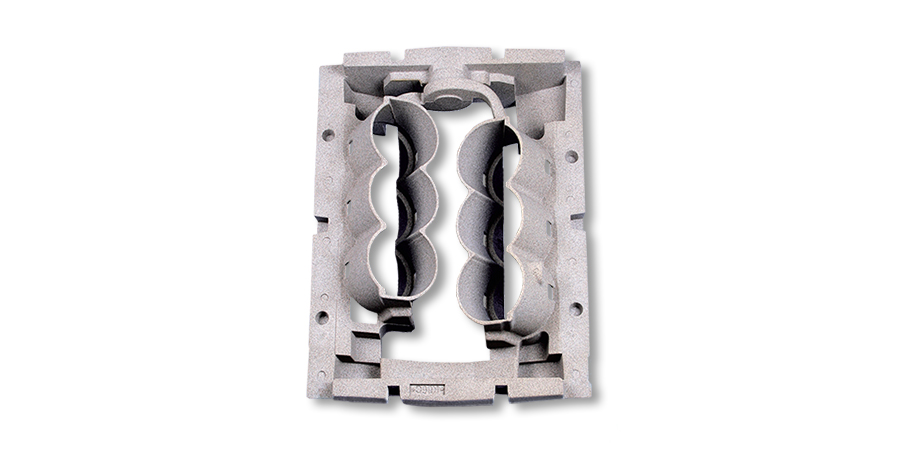

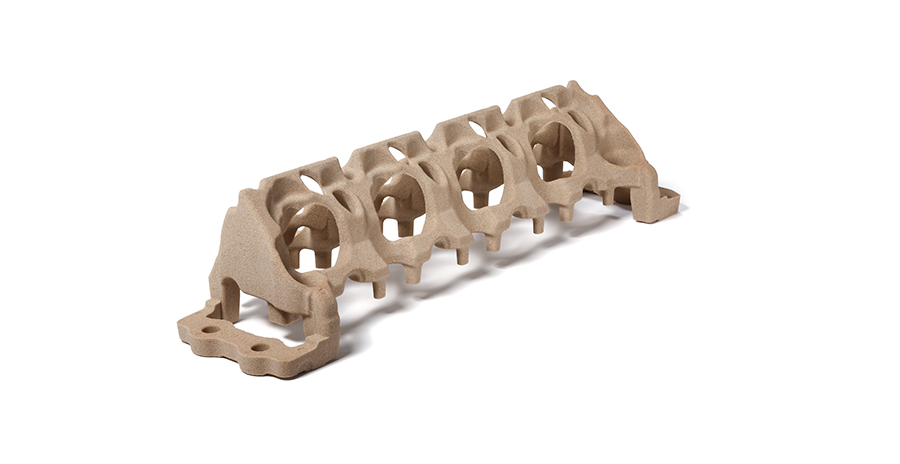

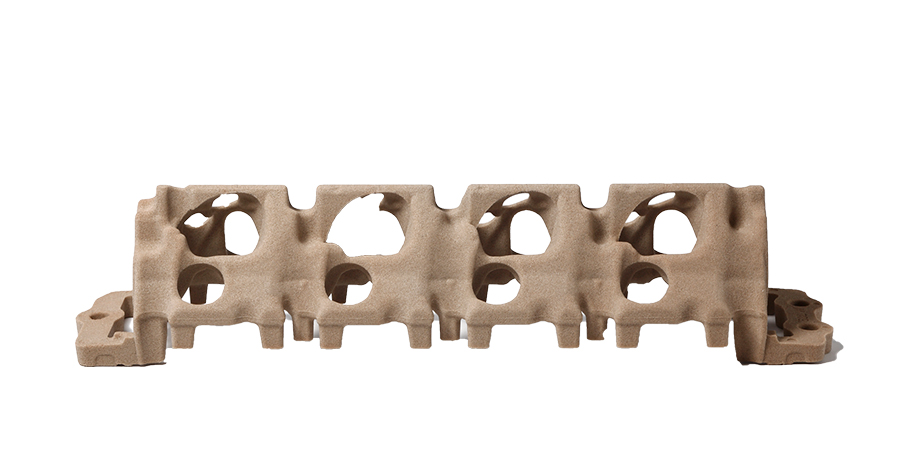

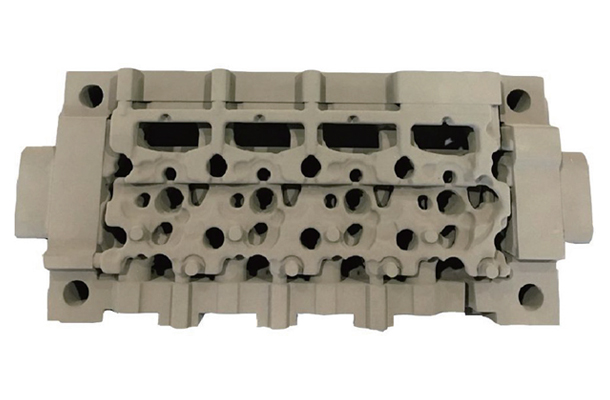

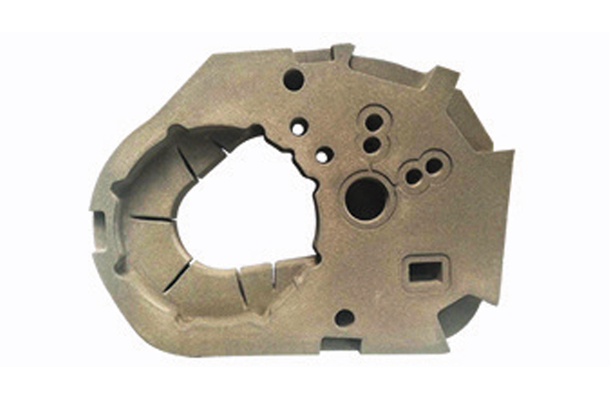

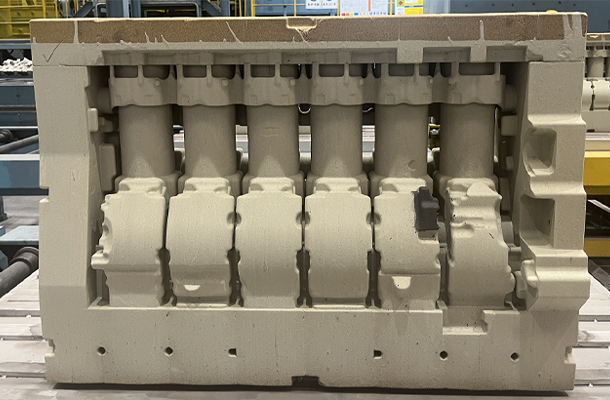

Transmission Housing | Cylinder Head Sand Core Group | Cylinder Block Sand Core Group |
4、Precautions
(1) Store in a sealed container in a cool place (15 - 25°C) with a relative humidity of less than 70%.
(2) Component I and Component II shall not be mixed or replaced with resin components of other brands.
